Spot function names

This page applies to Harlequin v13.1r0 and later; both Harlequin Core and Harlequin MultiRIP.

This section describes the available spot functions with their PostScript-language names, and their index number and comments on PDF usage where appropriate.

A PDF: entry shows where the spot function has a different name or availability to that in the PostScript language. These examples show the possible entries:

`PDF: EllipseC`	shows that a PDF job specifying `EllipseC` uses `EllipseCAdobe` as seen from PostScript language in the RIP.
`PDF: Not available`	shows that a PDF job cannot access the labeled spot function.
`PDF: RIP Extension`	Indicates that this is a spot function provided in addition to those defined in [PDF1.2].

Names marked as Not available have a related name ending in Adobe. These are provided where there is a Harlequin spot function with the same name as, but a different appearance from, the spot function as used from PDF jobs. This is done so that PDF spot functions have their correct representation.

An Index: entry shows the (deprecated) index value for the screen, for use with the OverrideSpotFunction system parameter. "Index: 5" shows that you can access the spot function using index 5.

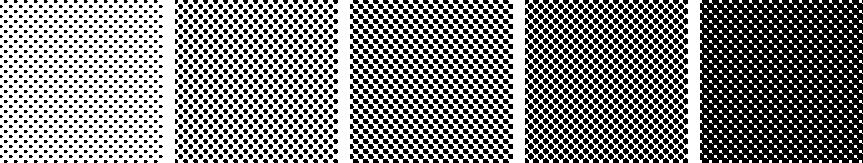

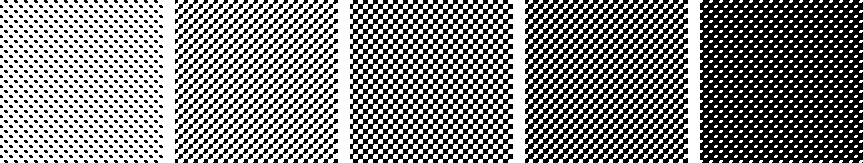

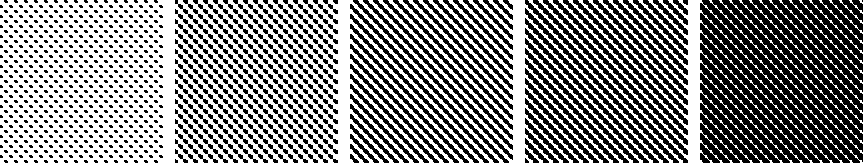

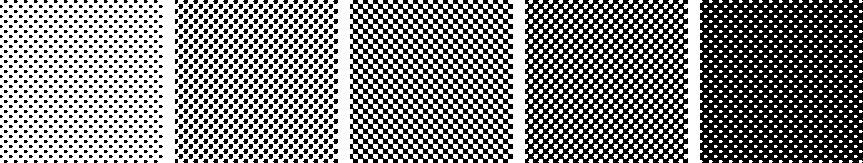

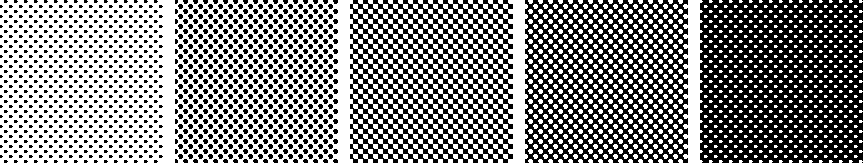

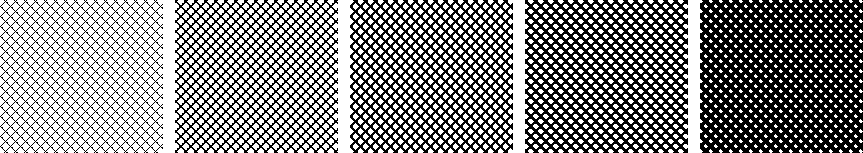

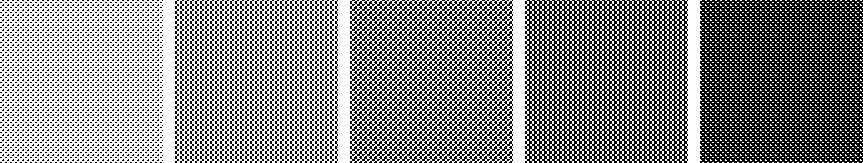

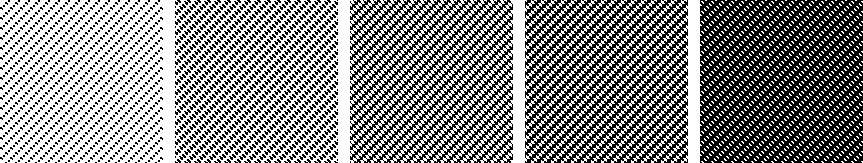

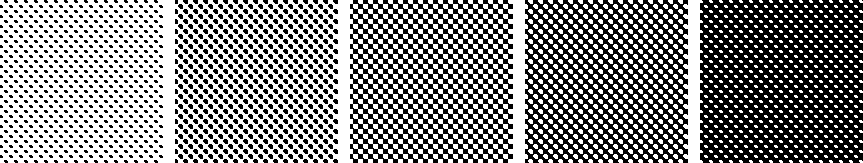

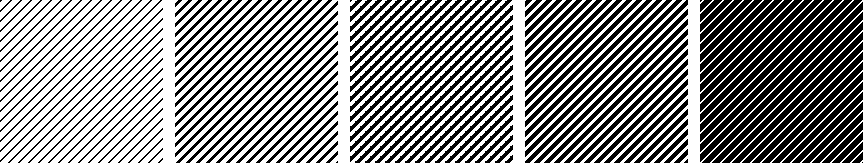

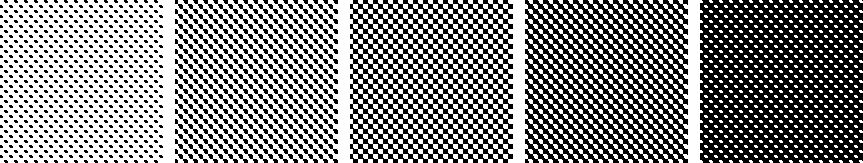

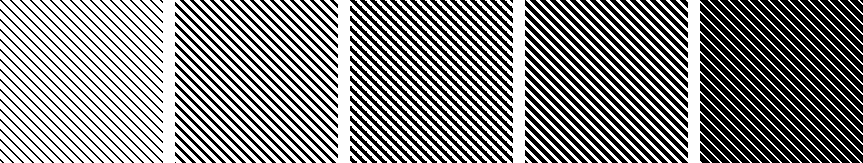

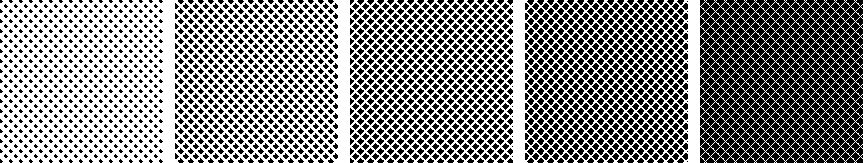

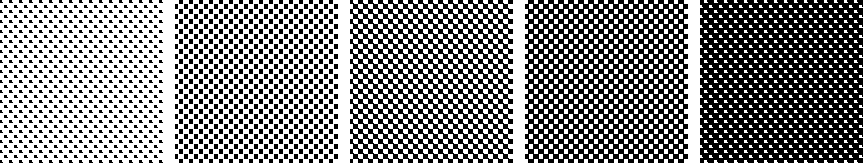

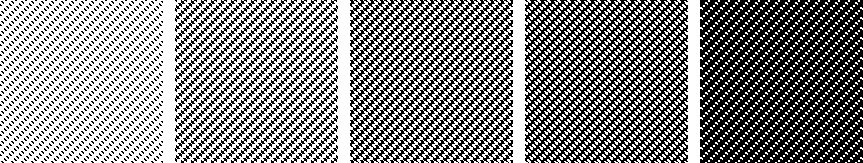

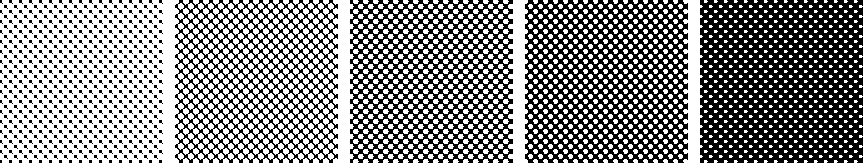

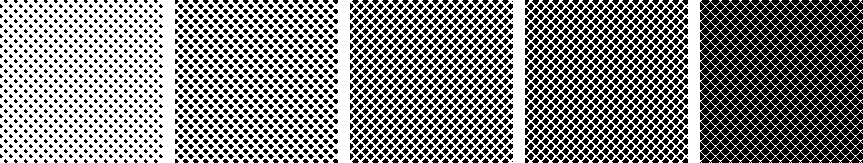

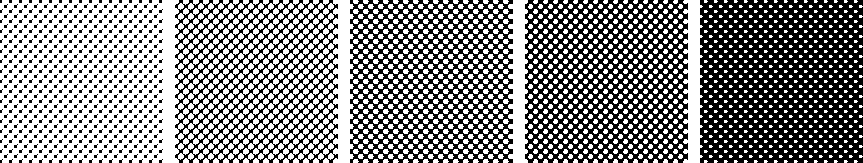

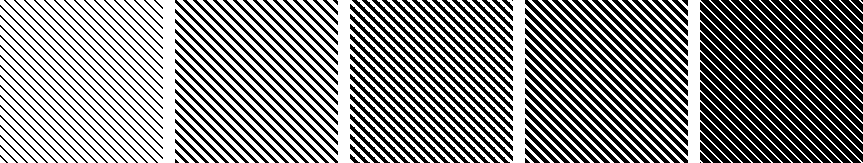

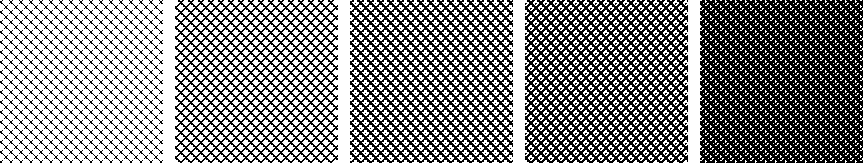

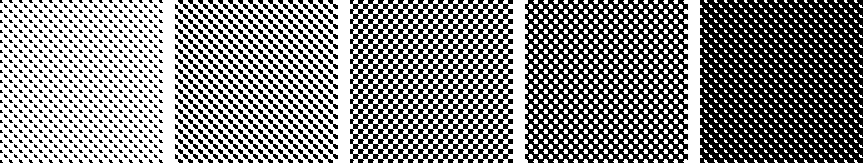

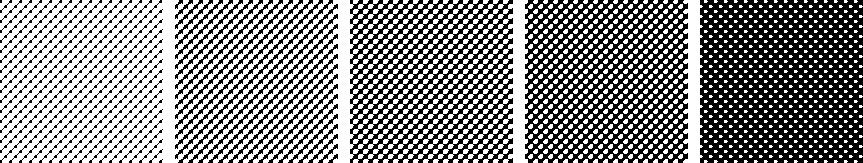

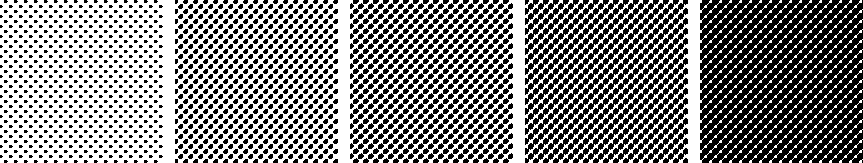

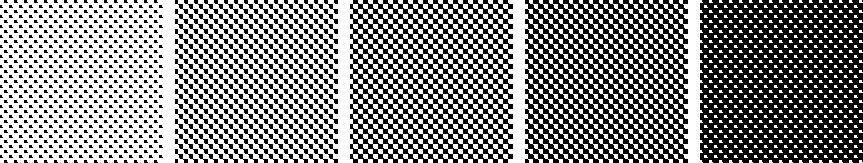

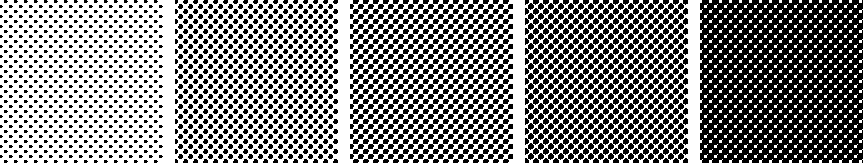

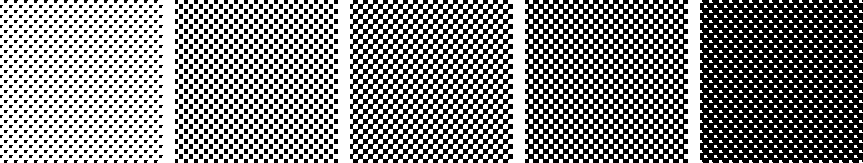

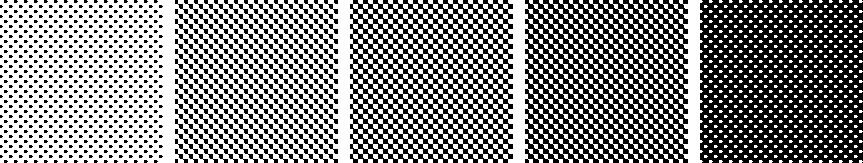

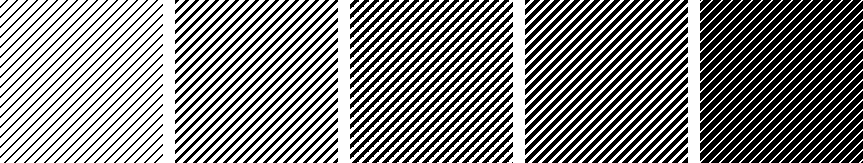

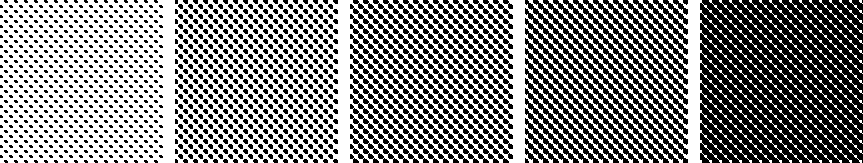

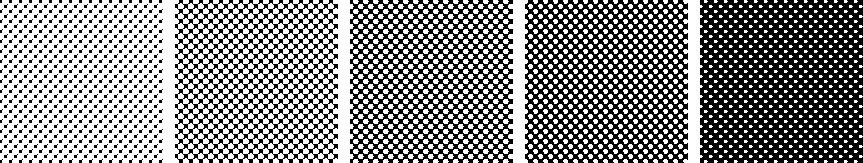

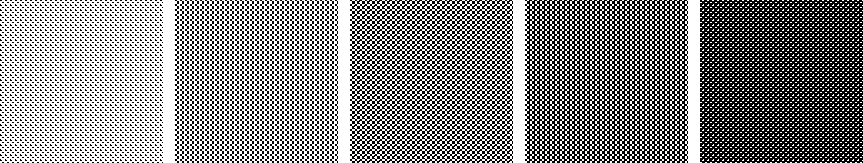

Name (and comments)	Samples for: 20%, 40%, 50%, 60%, and 80%
CosineDot
Cross
Diamond
Double
DoubleDot
Ellipse
EllipseA
EllipseB
EllipseB2 PDF: RIP Extension
EllipseC PDF: Not available
EllipseCAdobe PDF: EllipseC
Elliptical1 Index: 2
Elliptical2 Index: 3
EllipticalP
EllipticalQ1 Index: 8
EllipticalQ2 Index: 9
Euclidean PDF: Round Index: 1
InvertedDouble
InvertedDoubleDot
InvertedEllipseA
InvertedEllipseB PDF: RIP Extension
InvertedEllipseB2 PDF: RIP Extension
InvertedEllipseC
InvertedSimpleDot
Line PDF: Not available Index: 4
Line90 Index: 5
LineAdobe PDF: Line
LineX
LineY
Rhomboid PDF: RIP Extension
RhomboidAdobe PDF: Rhomboid
Round PDF: SimpleDot Index: 0
Square
Square1 Index: 6
Square2 Index: 7
HDS-A GUI: HDS Super Fine (requires an HDS license)
HDS-B GUI: HDS Fine (requires an HDS license)
HDS-C GUI: HDS Medium (requires an HDS license)
HDS-D GUI: HDS Coarse (requires an HDS license)
HDS-E GUI: HDS Super Coarse (requires an HDS license)
