Print Bar Groups Tab

Overview

A Print Bar Group is typically used to define a specific RIP Server configuration

If different RIP Server configurations are required (e.g. 600x600dpi and 1200x1200dpi) these would be defines as 2 different Print Bar Groups

When setting up the RIP Servers in SPC, each RIP Server can be assigned to Print Bars within a single Print Bar Group.
It is not possible to assign Print Bars from different Print Bar Groups to a single RIP Server.

Defining Print Bars and Print Bar Groups is very important if there are print bars with different characteristics.

This section has editing disabled when loading a .sdc file, if parameters on the Print Bar Groups tab need to be changed it should be considered a new printer.

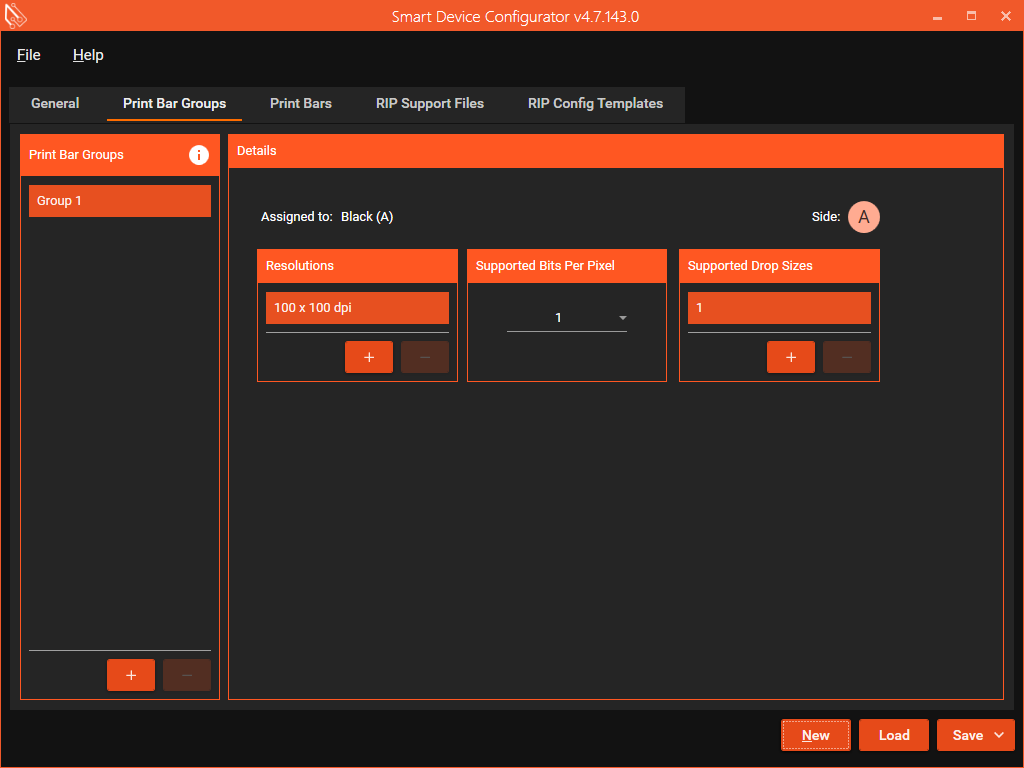

Print Bar Groups

The Print Bar Groups are defined here.

Use the + and - buttons to add and remove bars .

You can set the details for each group of print bars.

Details

Resolutions

Use the + and - button to change the list of available Resolutions.

Applications displaying Resolutions displays them in the order shown in this frame.

Drag and drop the entries to change the order of the entries.

Supported Bits Per Pixel

The list of available Bits Per Pixel include 1, 2, 4, and 8.

The Active Bits Per Pixel is the value selected from the dropdown list.

Supported Drop Sizes

Use the + and - buttons to change the list of available Drop Sizes.

Applications displaying Drop Sizes displays them in the order shown in this frame.

Drag and drop the entries to change the order of the entries.
